AUDIO INPUTS
Digital: 2 x Optical S/PDIF up to 96kHz, Coaxial RCA (up to 24bit/192kHz, DoP 64Fs)
Analogue: 1 x Stereo RCA pair
USB: 2 x USB 2.0 (Type A connector)
Streaming: Apple AirPlay 2, Chromecast Built-in, UPnPTM, Spotify® Connect, TIDAL, Roon Ready, Bluetooth, Internet Radio, Qobuz
HEADPHONE OUTPUTS
4.4mm Pentaconn (balanced)
4 pin XLR (balanced)
6.35mm jack (unbalanced)
1.5W RMS per channel into 16ohms
Suitable for headphones from 16ohms and upwards

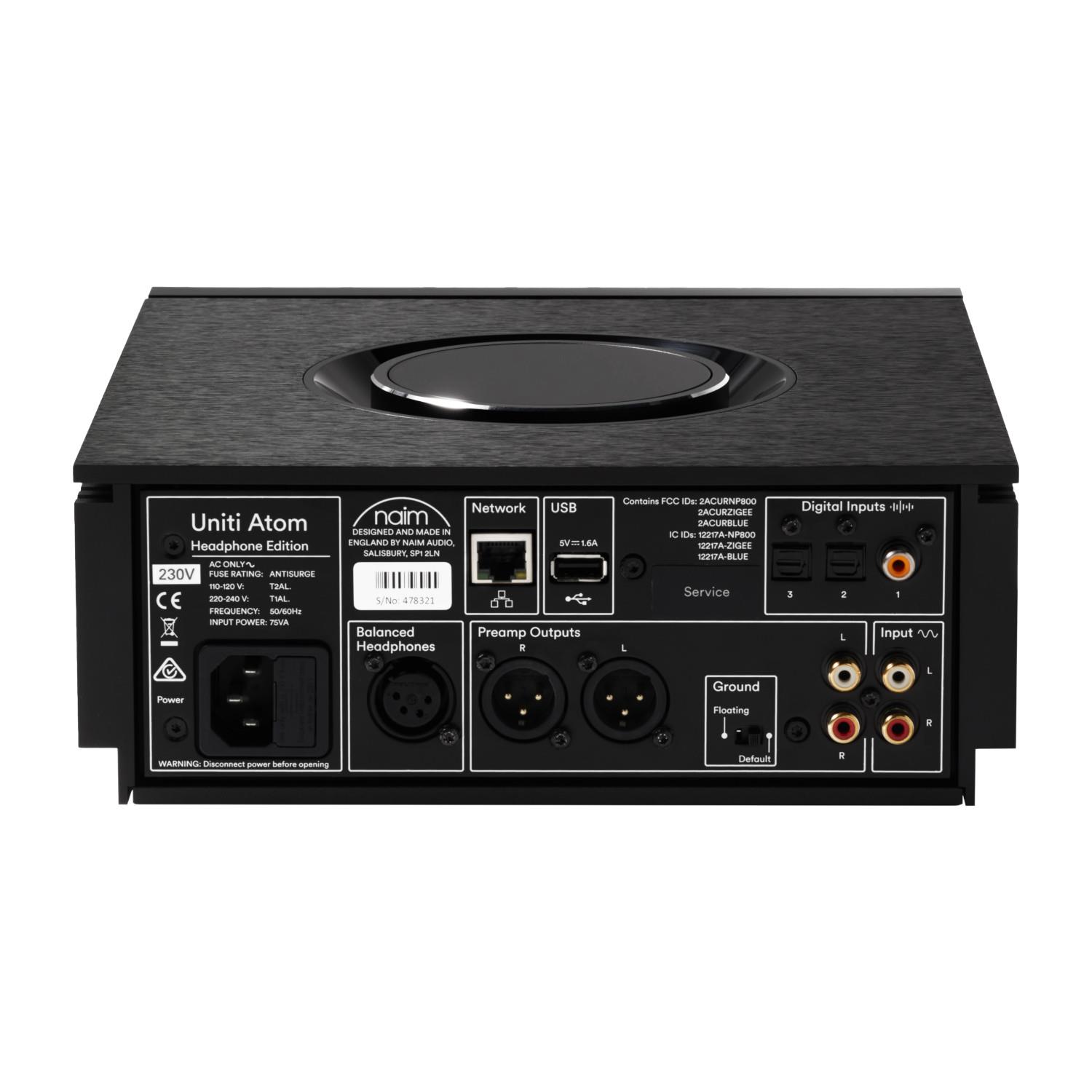

AUDIO OUTPUTS
Balanced XLR Preamp output
RCA Preamp output
CONNECTIVITY
Network: Ethernet (10/100Mbps), WiFi (802.11 b/g/n/ac with internal antennae)
Multiroom: Sync up to five Naim Streaming products and control via the Naim App.
USER CONTROL

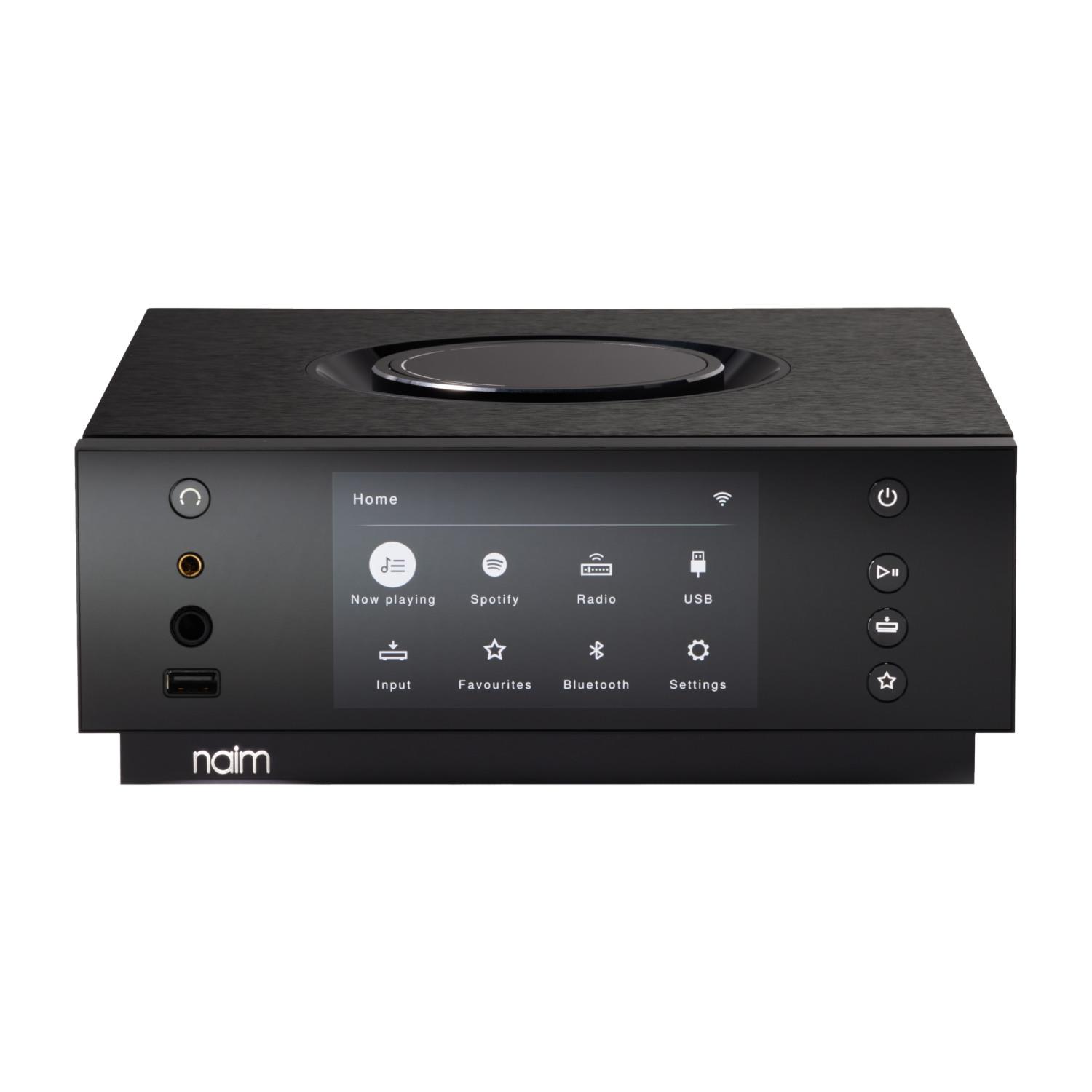

Product: Front panel buttons and rotary volume control
Handheld: Zigbee remote handset included and optional control app for Apple and Android devices
AUDIO FORMATS
WAV, FLAC and AIFF – up to 24bit/384kHz
ALAC (Apple Lossless) – up to 24bit/384kHz
MP3 – up to 48kHz, 320kbit (16 bit)
AAC – up to 48kHz, 320kbit (16bit)
OGG and WMA – up to 48kHz (16bit)
DSD- 64 and 128Fs
Bluetooth - SBC, AAC
POWER CONSUMPTION
Typical use: 17W
Network Standby mode: <2W
No-network Standby mode: <0.5W
Auto Standby time User selectable: adjustable from off up to 2 hour
Mains Supply - 115V, 230V; 50 or 60Hz
PHYSICAL
Dimensions (HxWxD): 95 mm x 245 mm x 265 mm
Weight: 7kg
